• Dishwasher: Hobart CL44E high-temp conveyor dishwasher with booster heater

• Workstations: (2) Stainless steel work tables
• Sinks:
• • Three-compartment sink
  • Hand wash sink with towel and soap dispenser
  • Wall-mounted 20-amp circuits above work tables
• Water System: Tankless “On Demand” hot water system

Electrical Requirements:

• Power Panel: 400A, 3-phase, 120/208V*

• • *Actual draw for the unit is between 200-250A at full load. So, the unit can accept up to 400A, but a full 400A is not required – unless customer intends to add additional equipment.
• Connection: 400A splitter trough with direct access for bare wire connections

• Fresh Water: ¾” food-grade fresh water line

• Grey Water Disposal: 3” grey water disposal line

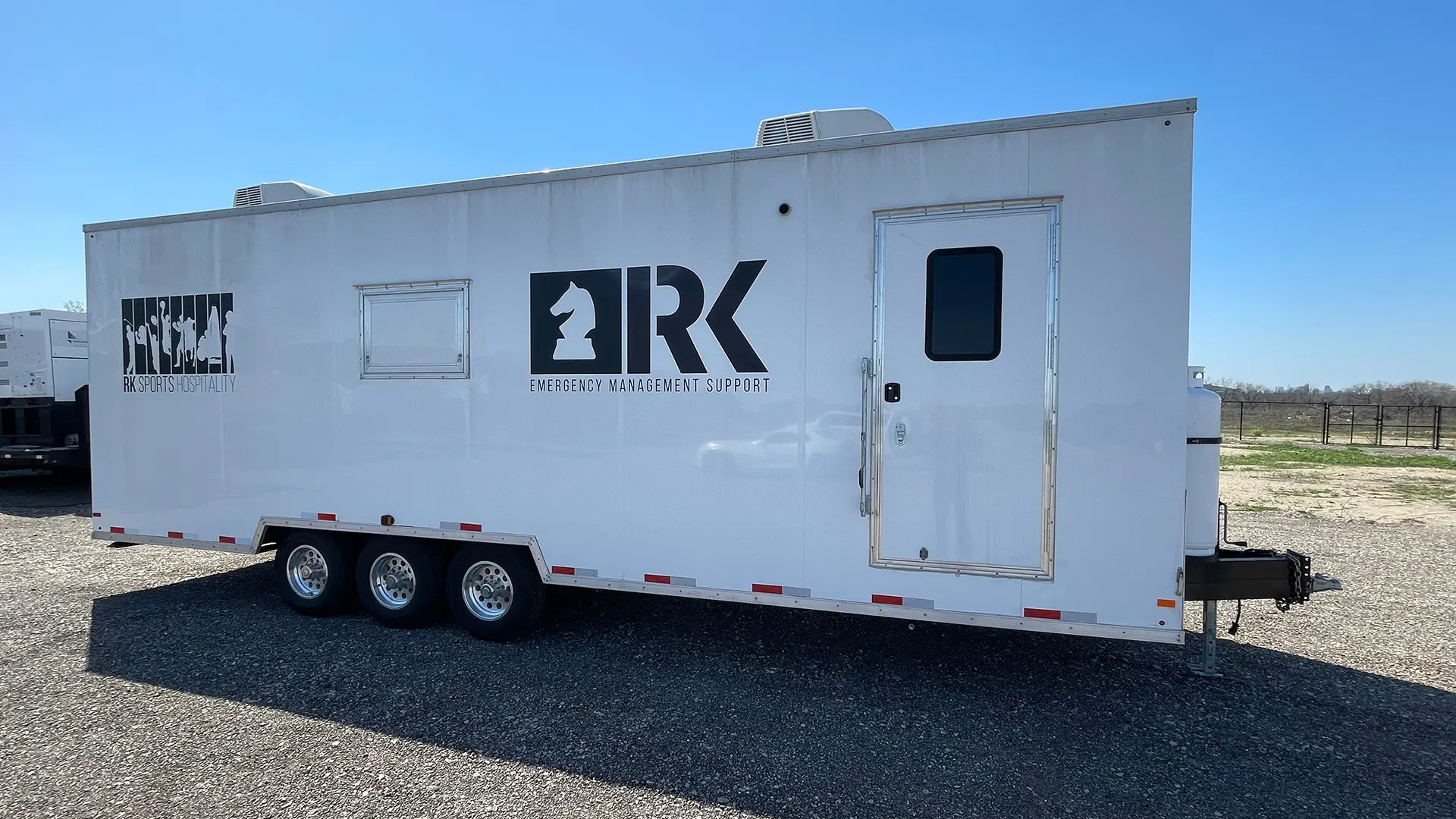

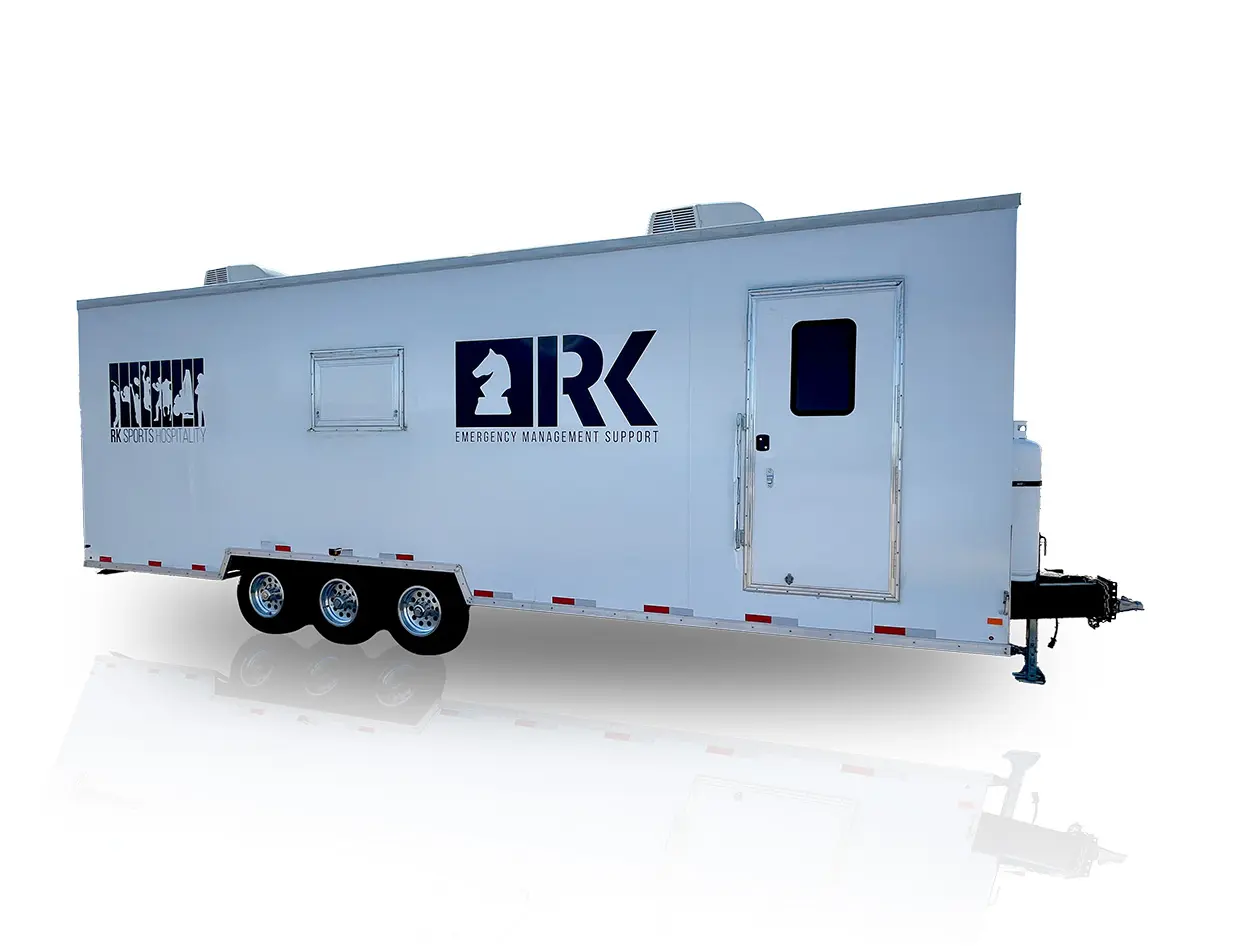

• Overall Length: 28’
• Overall Width: 8.5’
• Deck Height: 35”
• Tongue Weight: Approx. 4,200 lbs
• Axles: Triple 7,000lb axles with aluminum rims
• Insulation: Full insulation in floors, walls, and ceiling
• Lighting:

• • Full LED trailer lighting
  • (5) vapour-sealed fluorescent lights
• Doors: Two Exits
• Electrical Features:
• • (2) 5,000-watt wall heaters
  • Fire exit lights
  • Wall-mounted 20-amp circuits above work tables
• Certifications: ESA, NFPA, UL, NSF, DOT Approved
